Carte mère AMD B450 (Ryzen AM4) au format micro ATX avec compatibilité M.2, HDMI/DVI-D/D-Sub, SATA 6 Gb/s, Ethernet 1 Gb, USB 3.2 Gén. 1 Type-A et BIOS FlashBack™

• Refroidissement complet : radiateur PCH et Fan Xpert 2+

• Connectique ultrarapide : support M.2, Ethernet 1 Gb et ports USB 3.2 Gén. 1 Type-A

• 5X Protection III : protection complète pour vos composants

• Éclairage LED efficace : contrôles de l’éclairage pour slot PCIe slot et circuit audio.

  Les cartes mères de la série Prime B450M II sont une base solide pour votre premier montage PC. De plus, leur flexbilité grandira avec vos ambitions ! Notre équipe d’ingénieurs a combiné tous les points forts des derniers processeurs AMD Ryzen™, avec le design et la signature ASUS : profitez des meilleures technologies du marché dont l’utilitaire de réglages automatiques, les contrôles complets du refroidissement et l’audio immersif intégré. Montez votre PC en toute simplicité avec les cartes mères ASUS Prime B450M II à des prix plus qu’abordables !

  PRIME B450M-K II

  CPU

  AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  Refer to www.asus.com for CPU support list.

  Chipset

  AMD B450

  Mémoire

  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
  Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.

  Carte graphique

  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  1  x D-Sub
  1  x DVI-D
  1  x HDMI™ port
  Graphics specifications may vary between CPU types.

  Slots d´extension

  3rd/2nd/1st Gen AMD Ryzen™ Processors
  1 x PCIe 3.0 x16 (x16 mode)
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x8 mode)
  AMD Athlon™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x4 mode)
  AMD B450 chipset
  2 x PCIe 2.0 x1

  Stockage

  Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  Athlon™ with Radeon™ Vega Graphics Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
  AMD B450 chipset :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10

  LAN

  Realtek® RTL8111H
  ASUS LANGuard

  Audio

  Realtek ALC887/897 7.1-Channel High Definition Audio CODEC
  – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  – LED-illuminated design
  – Audio Shielding
  – Dedicated audio PCB layers
  – Premium Japanese audio capacitors
  Choose the chassis with HD audio module in front panel to support 8-channel audio output.

  Ports USB

  Rear USB Port ( Total 6  )
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6  )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)

  Software Features

  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3
  – Performance and Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  Fan Xpert
  PC Cleaner
  – EZ update
  – System Information
  ASUS CPU-Z
  AI Charger
  ASUS EZ Installer
  DAEMON Tools
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode

  ASUS Special Features

  ASUS 5X PROTECTION III
  – ASUS DIGI+ VRM
  – ASUS LANGuard
  – ASUS Overvoltage Protection
  – ASUS SafeSlot Core
  – ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  – ASUS Q-DIMM
  – ASUS Q-Slot
  ASUS Thermal Solution
  – Aluminum heatsink design
  ASUS EZ DIY
  – BIOS FlashBack™ button
  – BIOS FlashBack™ LED
  ASUS Lighting Control

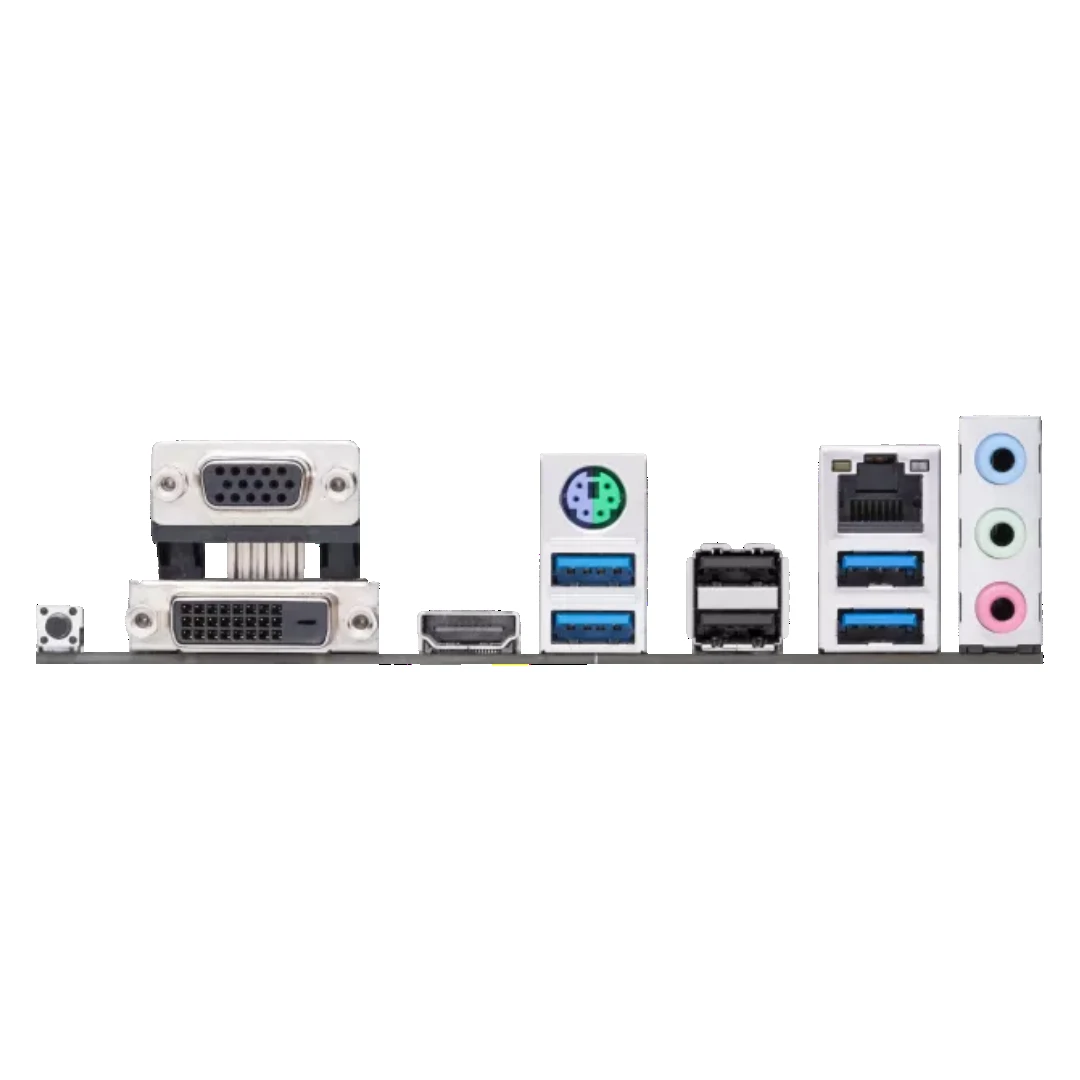

  Interface E/S arrière

  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
  1 x BIOS FlashBack™ Button(s)

  Interface E/S interne

  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x COM port header
  1 x Speaker connector

  Accessoires

  User´s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Anchor
  1 x Supporting DVD

  BIOS

  256 Mb Flash ROM, UEFI AMI BIOS

  Système d´exploitation

  Windows® 10 64-bit
  Windows® 7 64-bit *

  Facteur d´encombrement

  mATX Form Factor
  8.9  inch x 8.7  inch ( 22.6  cm x 22.1  cm )

  Remarques

  *To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
