• CPU

1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

(Please refer « CPU Support List » for more information.)

• Chipset

1. AMD B650

• Memory

1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

3. Dual channel memory architecture

4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to « Memory Support List » on GIGABYTE’s website for more information.)

• Onboard Graphics

• Integrated Graphics Processor with AMD Radeon™ Graphics support:

  1. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
     * Support for DisplayPort 1.4 version and HDR.

  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.)

• Audio

1. Realtek® Audio CODEC

2. High Definition Audio

3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

• Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.3

  3. Support for 11ax 160MHz wireless standard

  AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.2

  3. Support for 11ax 160MHz wireless standard

  Intel® Wi-Fi 6E AX210 (PCB rev. 1.2)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.3

  3. Support for 11ax 160MHz wireless standard

  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode

  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
     * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

• Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs

  2. AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs

  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB

• CPU:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  3. 1 x USB 3.2 Gen 1 port on the back panel

  CPU + USB 2.0 Hub:

  1. 3 x USB 2.0/1.1 ports on the back panel

  Chipset:

  1. 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header

  2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  3. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 1 x 8-pin ATX 12V power connector

3. 1 x 4-pin ATX 12V power connector

4. 1 x CPU fan header

5. 1 x CPU fan/water cooling pump header

6. 2 x system fan headers

7. 1 x system fan/water cooling pump header

8. 2 x addressable LED strip headers

9. 2 x RGB LED strip headers

10. 1 x CPU cooler LED strip/RGB LED strip header

11. 3 x M.2 Socket 3 connectors

12. 4 x SATA 6Gb/s connectors

13. 1 x front panel header

14. 1 x front panel audio header

15. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support

16. 1 x USB 3.2 Gen 1 header

17. 2 x USB 2.0/1.1 headers

18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

19. 1 x serial port header

20. 1 x reset button

21. 1 x reset jumper

22. 1 x Clear CMOS jumper

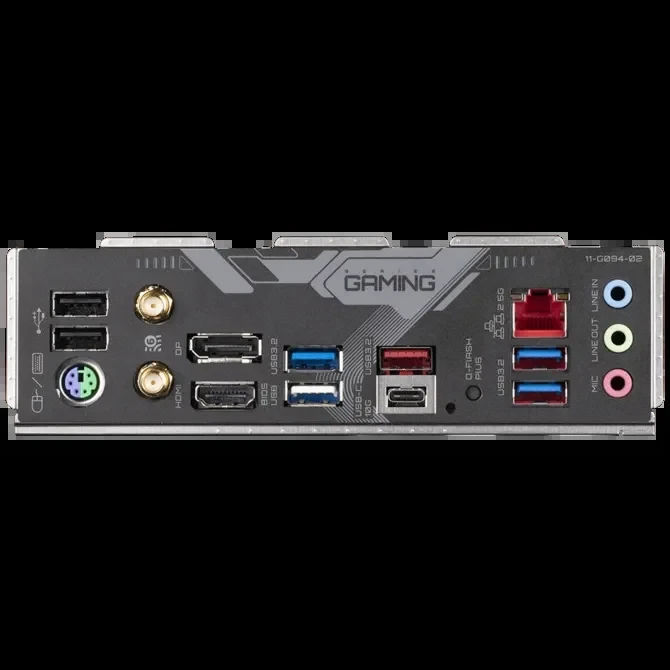

• Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port

2. 2 x SMA antenna connectors (2T2R)

3. 1 x Q-Flash Plus button

4. 1 x DisplayPort

5. 1 x HDMI port

6. 1 x USB Type-C® port, with USB 3.2 Gen 2 support

7. 1 x USB 3.2 Gen 2 Type-A port (red)

8. 3 x USB 3.2 Gen 1 ports

9. 3 x USB 2.0/1.1 ports

10. 1 x RJ-45 port

11. 3 x audio jacks

• I/O Controller

1. iTE® I/O Controller Chip

• H/W Monitoring

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Fan fail warning

6. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

1. 1 x 256 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

2. Support for Q-Flash

3. Support for Q-Flash Plus

• Bundled Software

1. Norton® Internet Security (OEM version)

2. LAN bandwidth management software

• Operating System

1. Support for Windows 11 64-bit

2. Support for Windows 10 64-bit

• Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm
