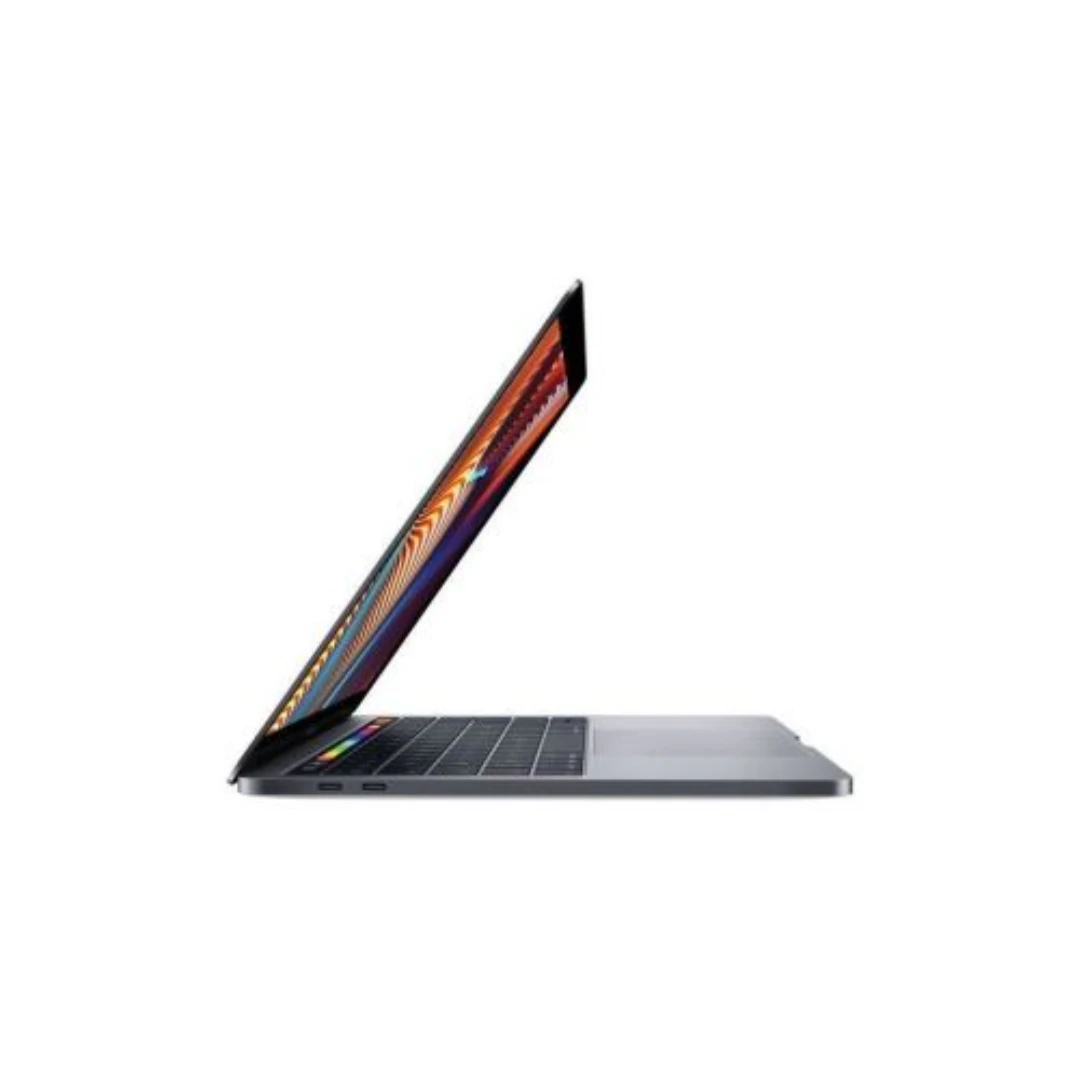

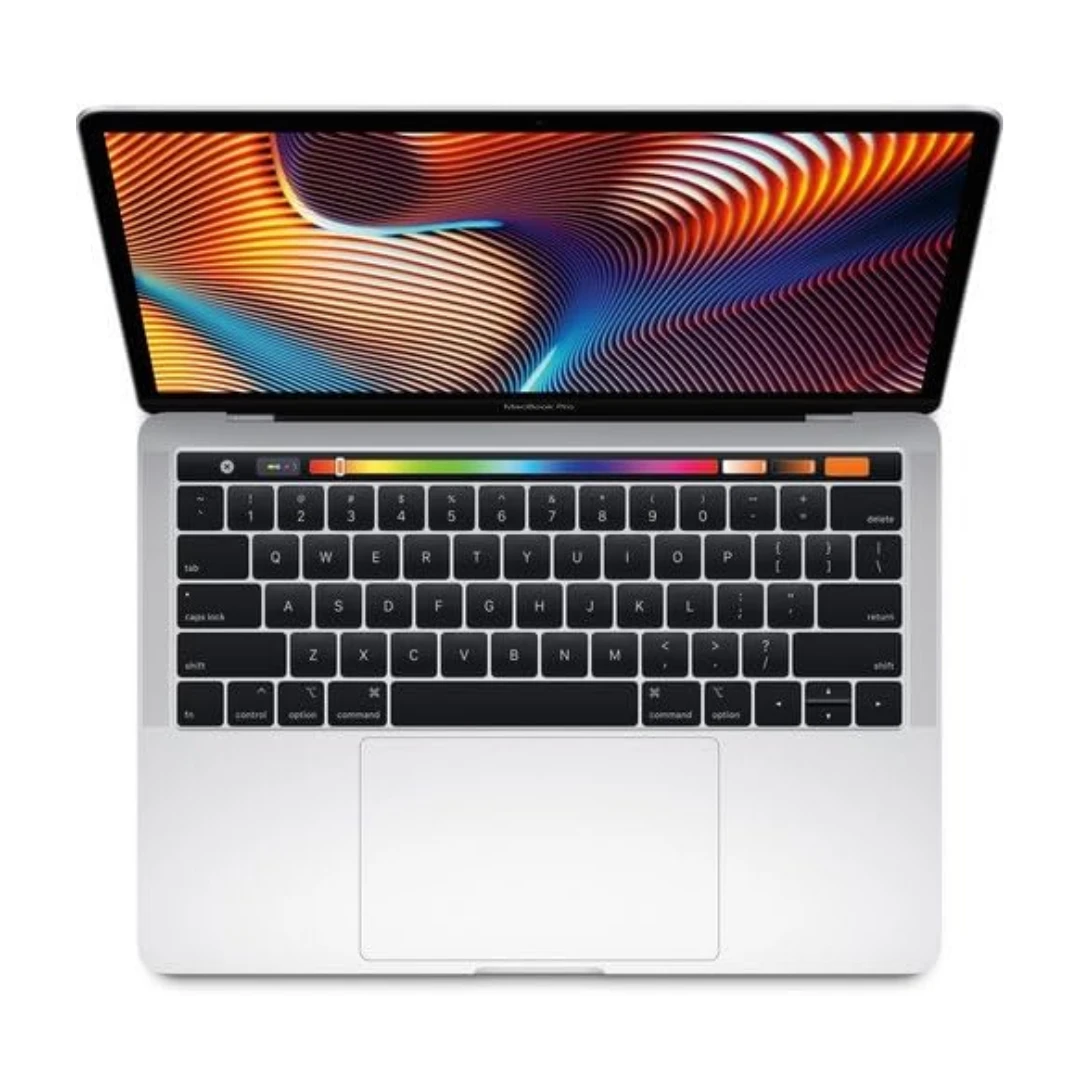

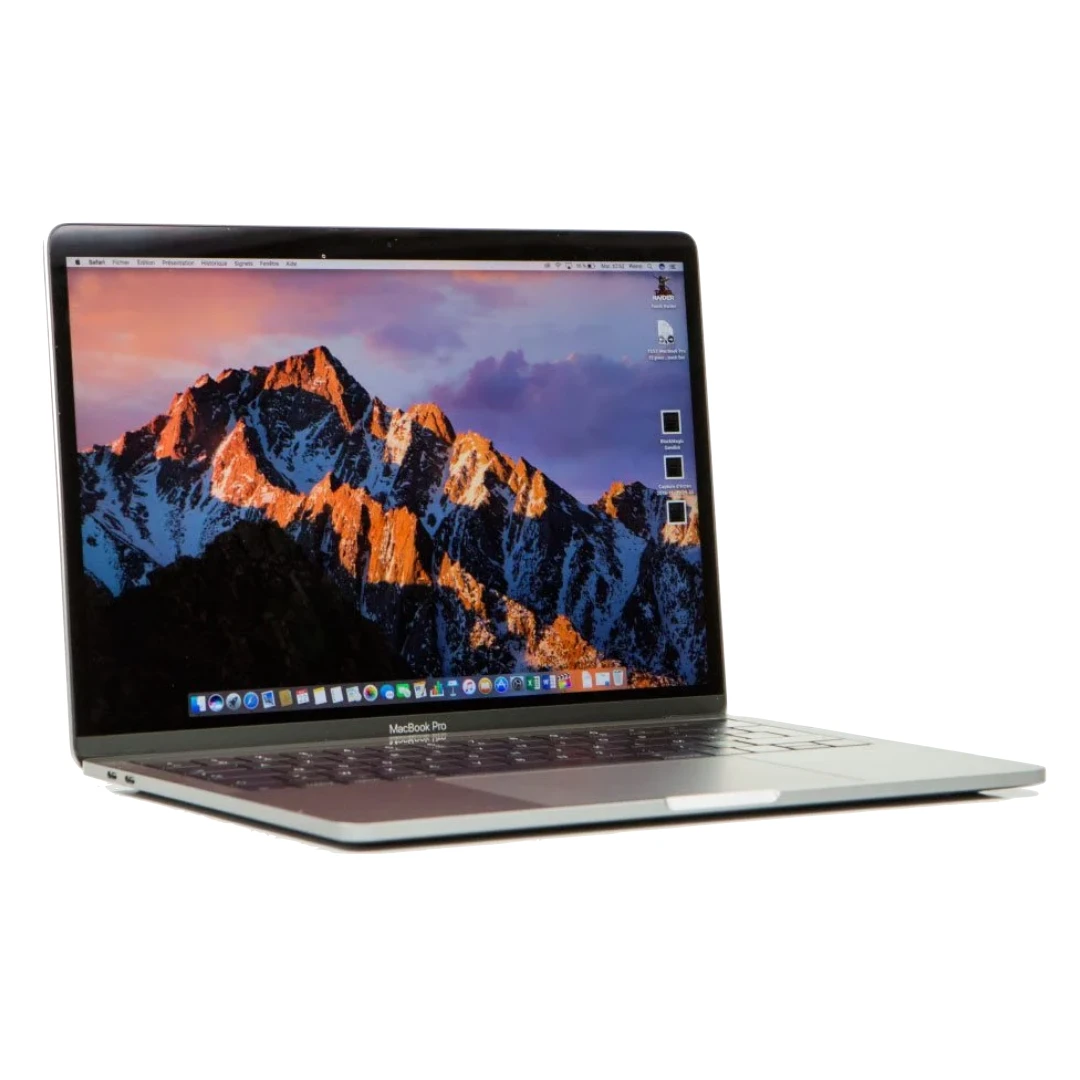

APPLE MACBOOK PRO 2018

Touch Bar

• Touch Bar with integrated Touch ID sensor

Screen

• Retina display

• 13.3-inch (diagonal) LED-backlit display with IPS technology; native resolution of 2560 x 1600 pixels at 227 pixels per inch with support for millions of colors

• Available scaled resolutions:

  • 1680 x 1050

  • 1440 x 900

  • 1024 x 640

• Luminance of 500 nits

• Wide color gamut (P3)

• True Tone Technology

Processor

• 2.3 GHz quad-core Intel Core i5 (Turbo Boost up to 3.8 GHz) with 128 MB eDRAM

  • Configurable with a 2.7 GHz quad-core Intel Core i7 processor (Turbo Boost up to 4.5 GHz) with 128 MB of eDRAM

Storage 1

• 256 GB

  • 256GB SSD

  • Configurable with 512GB, 1TB or 2TB SSD

Memory

• 8GB of built-in LPDDR3 memory at 2133 MHz

  • Configurable with 16 GB of memory

Graphics processor

• Intel Iris Plus Graphics 655

Recharge and extension

Four Thunderbolt 3 (USB‑C) ports with support for:

• Recharge

• DisplayPort

• Thunderbolt (up to 40 Gbps)

• USB 3.1 Gen 2 (up to 10 Gbps)

Keyboard and trackpad

• Full backlit keyboard with:

  • 64 keys (US) or 65 keys (ISO), including 4 arrow keys

  • Touch Bar with integrated Touch ID sensor

  • Ambient light sensor

  • Force Touch trackpad for precise cursor control and pressure-sensing capabilities; force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures

Wireless

• Wi-Fi

  • 802.11ac Wi-Fi connectivity; IEEE 802.11a/b/g/n compatible

• Bluetooth

  • Bluetooth 5.0 wireless technology

Camera

• 720p FaceTime HD camera

Video compatibility

Simultaneous support for native resolution on the built-in display in millions of colors and:

• A display with a resolution of 5,120 x 2,880 pixels at 60 Hz with over a billion colors

• Up to two displays with a resolution of 4096 x 2304 pixels at 60 Hz in millions of colors

• Up to two displays with a resolution of 3840 x 2160 pixels at 60 Hz with over a billion colors

Thunderbolt 3 digital video output

• Native DisplayPort output via USB-C

• VGA, HDMI, DVI and Thunderbolt 2 outputs supported using adapters (sold separately)

Audio

• High dynamic range stereo speakers

• Three microphones

• 3.5mm headphone jack

Battery and power supply 2

• Built-in 58 W/h lithium-polymer battery

• 61W USB-C Power Adapter

Operating conditions

• Voltage: 100 to 240 V AC

• Frequency: 50 to 60 Hz

• Operating temperature: 10 to 35°C

• Storage temperature: -25 to 45°C

• Relative humidity: 0 to 90% non-condensing

• Maximum altitude: tested up to 3,000 m

• Maximum storage altitude: 4,500 m

• Maximum transport altitude: 10,500 m

Dimensions and weight

• Height: 1.49 cm

• Width: 30.41 cm

• Depth: 21.24 cm

• Weight: 1.37 kg 3

Operating system

macOS
