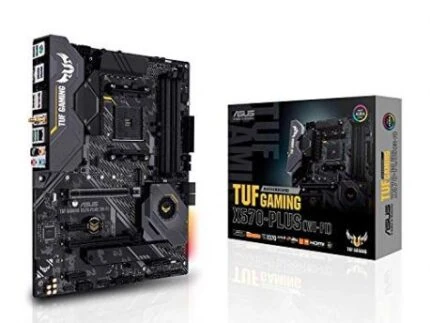

X570 ASUS TUF GAMING X570-PLUS

Category: Non classé

د.ج 54.900,00

TUF GAMING X570-PLUS

CPU

* for CPU support list.,AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors,* Due to CPU limitation, CPU cores supported varies by processors.

Chipset

AMD X570

Memory

* for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* The maximum memory frequency supported varies by processor.

Graphic

Integrated Graphics in AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors,Multi-VGA output support : HDMI/DisplayPort ports,- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz,- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Expansion Slots

AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors,AMD Ryzen^TM 3000 G-Series / 2000 G-Series Processors,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0/2.0 x16 (x8 mode),AMD X570 chipset,1 x PCIe 4.0 x16 (max at x4 mode),3 x PCIe 4.0 x1

Storage

AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : ,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : ,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support,AMD X570 chipset : ,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,8 x SATA 6Gb/s port(s),Support Raid 0, 1, 10

LAN

Realtek® L8200A,ASUS Turbo LAN Utility,TUF LANGuard

Audio

Realtek® ALC S1200A8-Channel High Definition Audio CODEC,Audio Feature :,- Exclusive DTS Custom for GAMING Headsets.,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

USB Ports

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :,3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-C^®),4 x USB 3.2 Gen 1 port(s) (4 at back panel, ),2 x USB 3.2 Gen 1 port(s) (2 at mid-board),AMD X570 chipset :,4 x USB 2.0 port(s) (4 at mid-board)

Special Features

ASUS TUF PROTECTION,- ASUS SafeSlot: Protect your graphics card Investment,- ASUS ESD Guard: Enhanced ESD protection,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: Precision control for stable power,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,AURA :,- Aura Lighting Control,- Aura RGB Strip Headers,- Addressable Gen 2 Header,ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,ASUS Quiet Thermal Solution :,- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink,- ASUS Fan Xpert 4,ASUS EZ DIY :,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode,ASUS Q-Design :,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM,DIY Friendly Design,- Procool,- SafeSlot,- Digi+ VRM,- Highly Durable components,- ESD Guards

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s),1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s),4 x USB 3.2 Gen 1 (up to 5Gbps) ports,3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C^TM)

Internal I/O Ports

1 x COM port header,2 x Aura RGB Strip Header(s),1 x Addressable Gen 2 header(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode),1 x SPI TPM header,8 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),3 x Chassis Fan connector(s),1 x AIO_PUMP connector,1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x COM port header,1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Accessories

2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD,1 x TUF GAMING Sticker,1 x TUF Certification card(s)

BIOS

256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WOL by PME, PXE,WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor,12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
